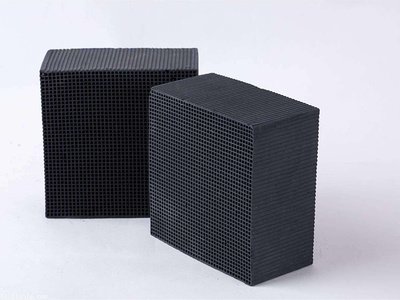

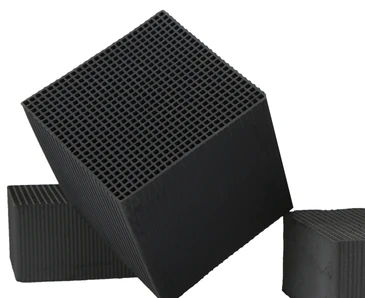

Honeycomb Activated Carbon
Honeycomb-zoo li activated carbon yog ib hom tshiab ntawm cov khoom siv nqus tau los ntawm cov hmoov zoo ua kom cov pa roj carbon thiab cov ntawv khi. Honeycomb carbon block muaj ntau qhov los ntawm qhov ntawm ib kawg mus rau lwm qhov kawg hauv ib lub cubic lossis cylindrical zoo li tus thaiv. Honeycomb carbon lim yog ib hom zoo carbon lim lim kom tshem tawm cov ntxhiab tsw tsis kaj siab, feem ntau thiab lwm yam kuab paug. Kev xyaum tau ua pov thawj tias cov nyhuv purification zoo dua li cov pa roj carbon activated.
Cov qauv zoo li no ua rau tsis tshua muaj siab poob qis, muaj zog txhua yam muaj zog thiab ntau qhov sib cuag nrog cov pa. Honeycomb carbon thaiv feem ntau yog siv rau vapor theem cov pa phem tshem tawm. Tam sim no nws yog dav siv rau huab cua purification system uas yog siab txaus tus nqi, low-concentration VOC pa paug cua ntws.
| Yam khoom No | Honeycomb Activated Carbon |
| Cov khoom xyaw tseem ceeb | Cov pa roj carbon activated |
| Specification | 50 * 50 * 100mm 100 * 100 * 100mm 100 * 100 * 30mm |
| Pore ntom | 50-300 pore/in2 |
| Kev ceev ceev | 0 3-0.45g/ml |
| Desorption kub | < 120℃ |
| Cua Ceev | 0.8m/s |
| Zoo Compressive zog | >1.2 MPa siab |
| Tus nqi ntawm adsorption rau benzene vapor | > 36% |

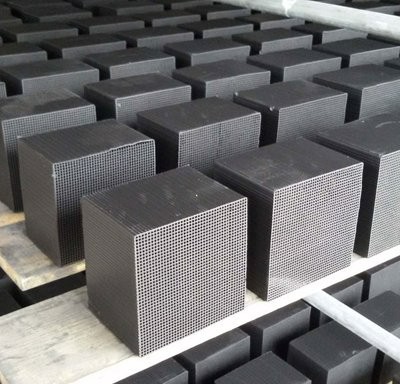

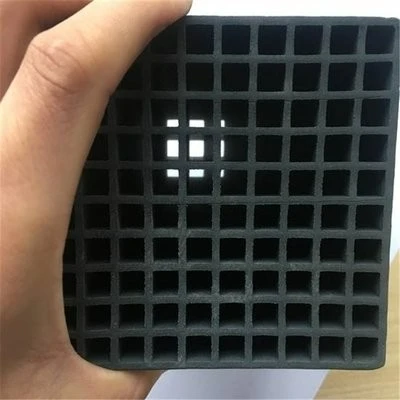

Khib Gas Treatment Honeycomb Activated Carbon
Cov pa roj carbon activated muaj peev xwm tshem tawm cov khoom tsis zoo lossis cov pa phem los ntawm cov kwj deg. Cov molecules sau rau ntawm qhov loj sab hauv ntawm lub honeycomb.
Cov pa phem tuaj yeem raug tshem tawm los ntawm honeycomb activated carbon: benzene, carbon tetrachloride, acetone, ethanol, aether, carbinol, acetic acid, ethyl ester, cinnamene, chlorine, phosgene, foul gas, butane, methanol, styrene, malodorous gases thiab lwm yam acids. siv los tshem tawm cov pa roj carbon monoxide, carbon monoxide, carbon tetra.
Honeycomb activated carbon has similar adsorption performance and a larger geometric surface area to ordinary activated carbon. Its biggest feature is that the airflow resistance along the opening direction is extremely small. At the same airflow velocity (>0.5m/s), nws qhov kev tiv thaiv tsuas yog kwv yees li 1/10 ntawm cov pa roj carbon granular (4-6 mesh) piv rau tib lub sijhawm xyoo tas los. Nyob rau tib lub sijhawm, qhov tshwm sim ntawm dej-resistant honeycomb activated carbon tau nce daim ntawv thov ntau yam ntawm honeycomb activated carbon, ua rau nws siv dav hauv ntau cov khoom siv roj pov tseg.
Qhov zoo ntawm Honeycomb Activated Carbon
Cov qauv honeycomb muaj qhov pore loj ntawm 10-2, 000 Angstroms thiab BET thaj tsam thaj tsam ntawm ~200-3, 000 sq.m/gm.
Lub honeycomb carbon thaiv yog desorbed nrog cov kua nplhaib lub tshuab nqus tsev twj thiab ib qho me me ntawm cov cua sov cua sov cua sov - cov khoom sib txuas adsorbed raug stripped.
Qhov luv luv rau sab hauv diffusion huab hwm coj hloov mus rau honeycomb carbon ua rau kom nrawm nrawm thiab desorption tus nqi thiab yog li lub sijhawm luv luv.

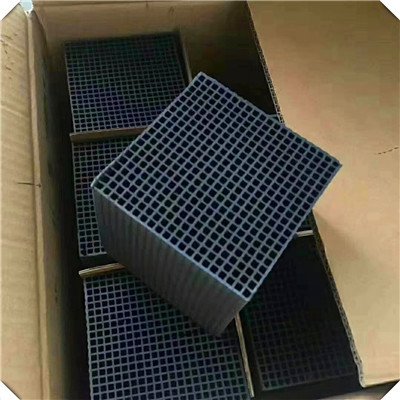

Ntim
Tiv tauj peb hnub no
Yog xav paub ntxiv txog peb cov khoom siv roj carbon activated lossis tau txais cov lus qhia, cov qauv, TDS thiab MSDS, thiab lwm yam.
